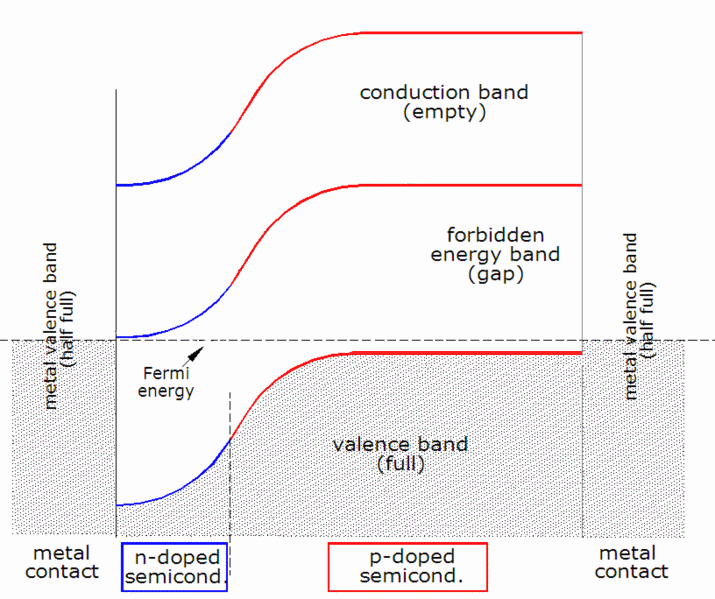

    Oooh perfect person to ask my question to then. In an ideal solar cell diagram there is a diode that is pointed towards the negative terminal in parallel and the solar cell is thought as a constant current source. Why is that diode there? It would seem to me that the diode in that configuration would just shunt all of the energy straight to the negative and you would be unable to use it for a load?




    ​See equivalent ​circuit of a solar cell
    Last edited by laser411; 07-27-2016, 11:28 AM. Reason: added link

    Comment

    • bcroe
      Solar Fanatic
      • Jan 2012
      • 5203

      #3
      A diode won't conduct at very low applied forward voltage. A shorted load connected to the solar cell will take all the available current,
      but at zero volts takes no power. Increasing the load resistance slightly will generate some voltage drop and power transmitted to the
      load. More resistance will give more voltage and at first more power, but as the voltage increases the diode starts conducting. A
      point is reached where the power transmitted peaks; after that most of the current conducts internally and power delivered to the load
      drops off again, zero at open circuit. Bruce Roe
